DF2 3 Phase EMI Power Line Noise Filter Series–Rated Current：15A—50A

Short Description:

■ Three Phase AC 250/440VAC EMI Filters/Noise Filters
■ Rated Current：15A—50A
■ Double filter circuit design

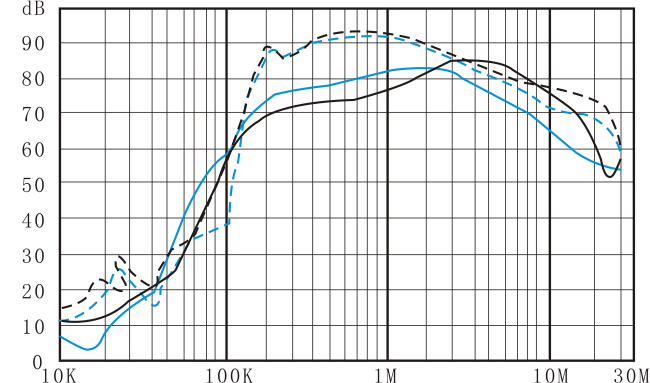

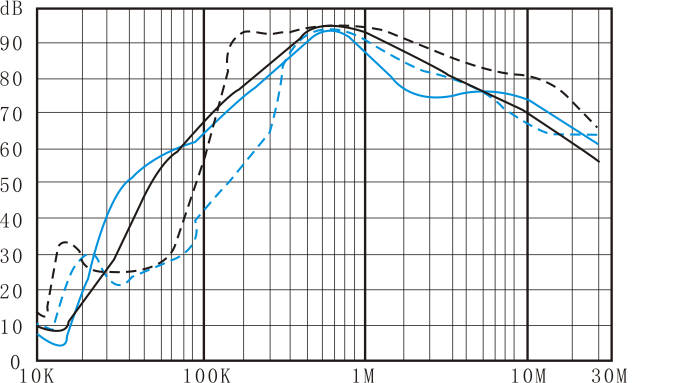

■ In the 1mhz-30Mhz frequency band, it has very good common mode and differential mode interference suppression capabilities

■ Widely application in Switching power supply, UPS, Power equipment and Electric cabinet, to reduce the interference from the power grid

■ We are a manufacturer, focusing on EMI filters for 14 years

■ Support free samples

■ We have UL ROHS CE certificate

Get free samples

Download to pdf

Product Detail

Product Tags

Product introduction

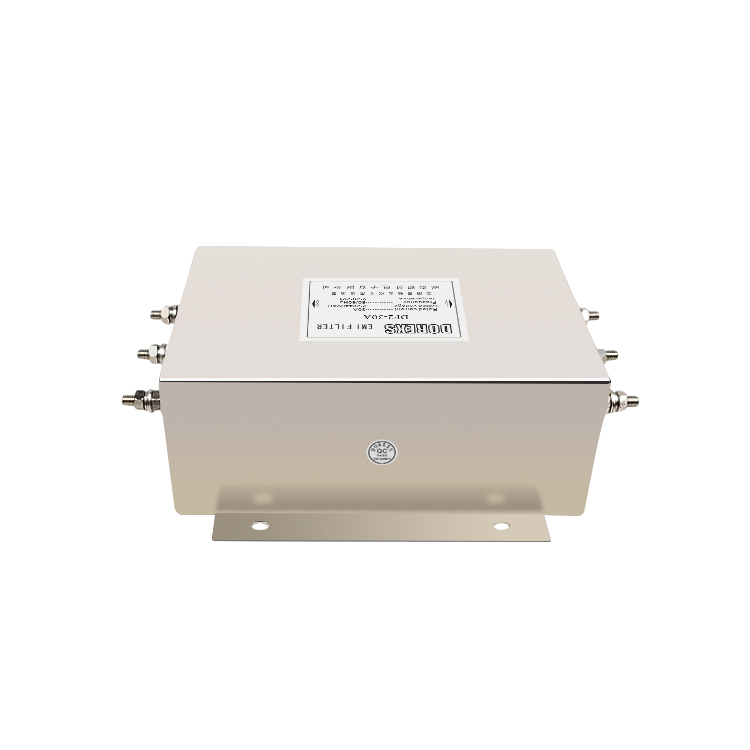

DF2 three phase Power Line Noise filter with small size, in solving high frequency interference of 1mhz-30mhz. They have been widely used in Swiching power supply, UPS, Electronic Power Equipment to reduce the electromagnetic interference and interference from the power grid.

Features of the DF2 Filter

■ Three Phase AC 250V EMI Filters/Noise Filters

■ General purpose

■ Feature compact,Easy to install

Application cases of DF2 Filter

Widely used in Swiching power supply, UPS, Electronic Power Equipment to reduce the electromagnetic interference and interference from the power grid.

Product information

	Rated voltage	250/440VAC
	Line Frequency	50/60Hz
	Test Voltage	1500VDC (line/line)
		2250VAC (line/ground)
	Insulation Resistance	>50MΩ@500VDC
	Climatic category	25/085/21

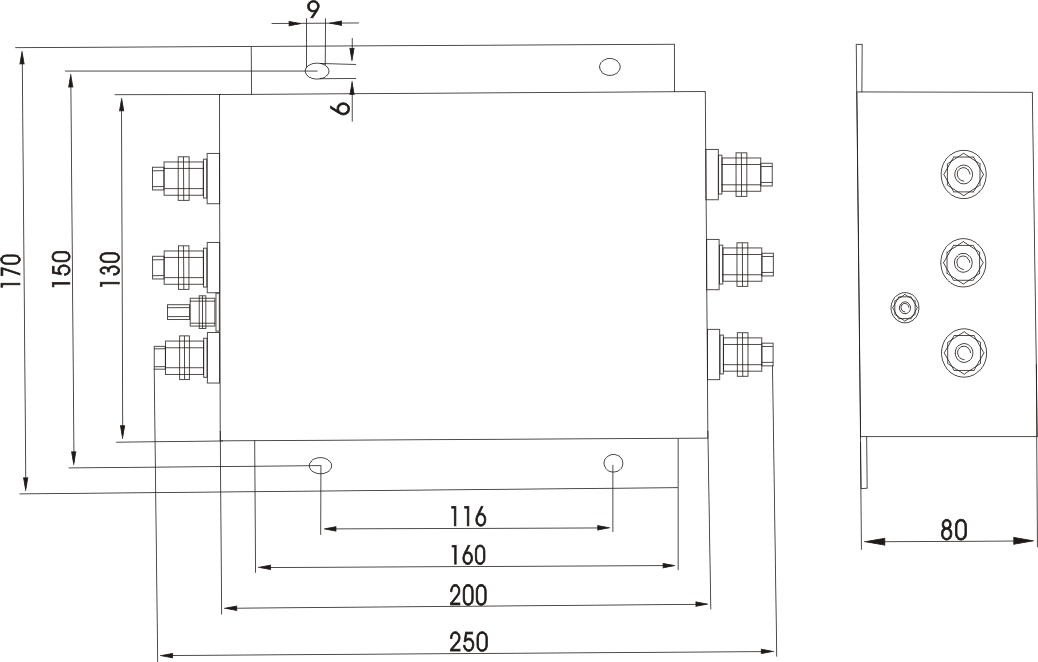

Outine Drawing and Dinemsions(mm)

List of general products

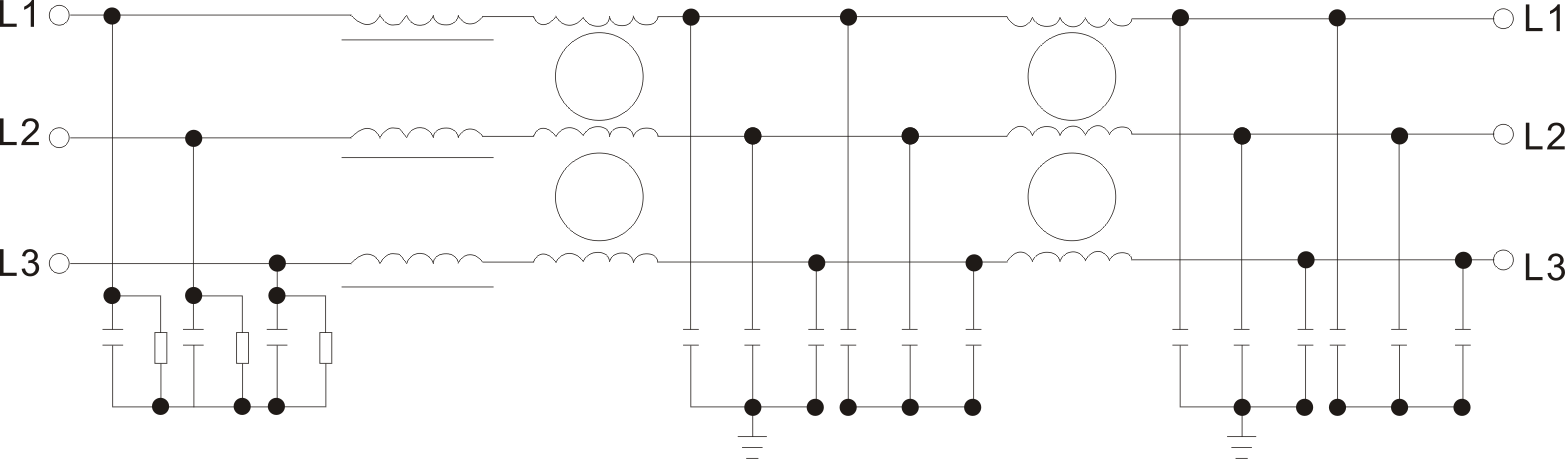

Part No.	Rated Current	Leakage Current	Electrical Schematics	Safety certification
DF2-15A	15A	<3.0mA		CE，ROHS
DF2-25A	25A	<5.0mA
DF2-30A	30A	<5.0mA
