Product introduction
This series of products produced by our company have very good suppression effect on 10khz-30mhz differential mode interference and common mode interference, low price, good performance, support various parameter customization; three connection modes of wire / copper bolt / standard 6.3 * 0.8 quick socket are available for you to choose, which are convenient to use and fast to install. It has a very good performance to solve the high frequency interference of 10khz-30mhz.
Application cases
They have been widely used in various electrical appliances, testing equipment, medical equipment, fire protection system, laser cutting equipment, urban security monitoring system, stage lighting equipment, power grid control system, LED lighting drive system, industrial automation robot and other complex electromagnetic interference environment equipment, to ensure the normal and safe operation of these equipment, effectively reduce equipment failure It can reduce the interference of high frequency signal to peripheral equipment and power grid, and protect your EMC conducted radiation test.
Electrical appliances
Testing equipment
Laser cutting equipment
Product information
 |
Rated voltage |
1115/250VAC |
|
Line Frequency |
50/60Hz |
|
|
Test Voltage |
1500VDC (line/line) |
|
|
2150VAC (line/ground) |
||
|
Insulation Resistance |
>50MΩ@500VDC |
|
|
Climatic category |
25/085/21 |

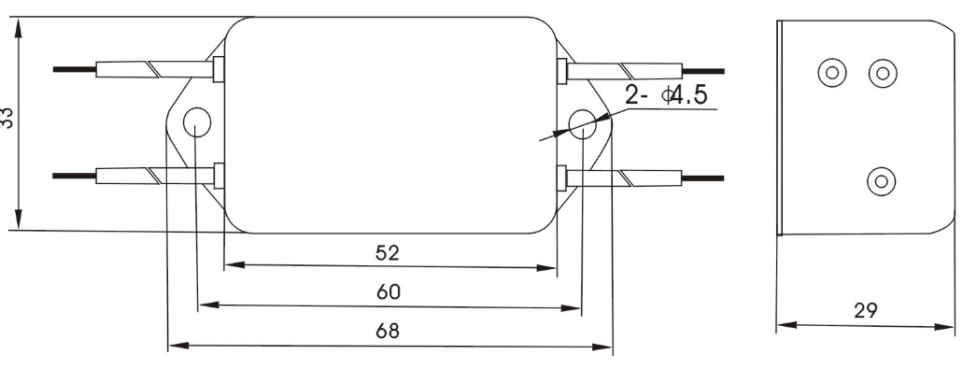

Outline Drawing and Dinemsions（mm）
List of general products
|
Part No. |
Rated Current |
Leakage Current |
Terminal |

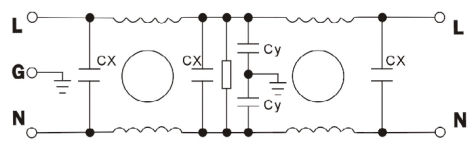

Electrical Schematics |
Safety certification |
|
|
Input |
Output |
|||||
| DEB1-1A |
3A |
<2.0mA |
Wire |
Wire |
 |
CUL，CE
CQC,ROHS |
| DEB1-3A |
6A |
<2.0mA |
Wire |
Wire |
||
| DEB1-6A |
10A |
<2.0mA |
Wire |
Wire |
||
This parameter is only a specification product, we support parameter customization

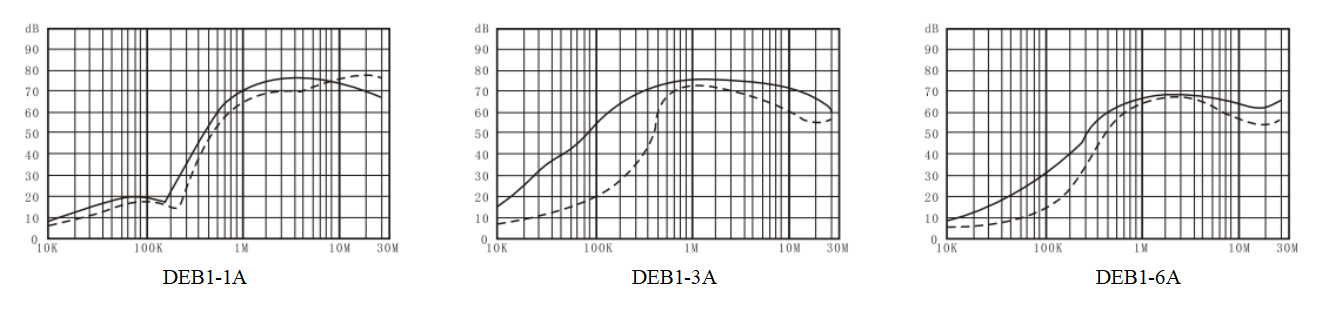

Insertion Loss
